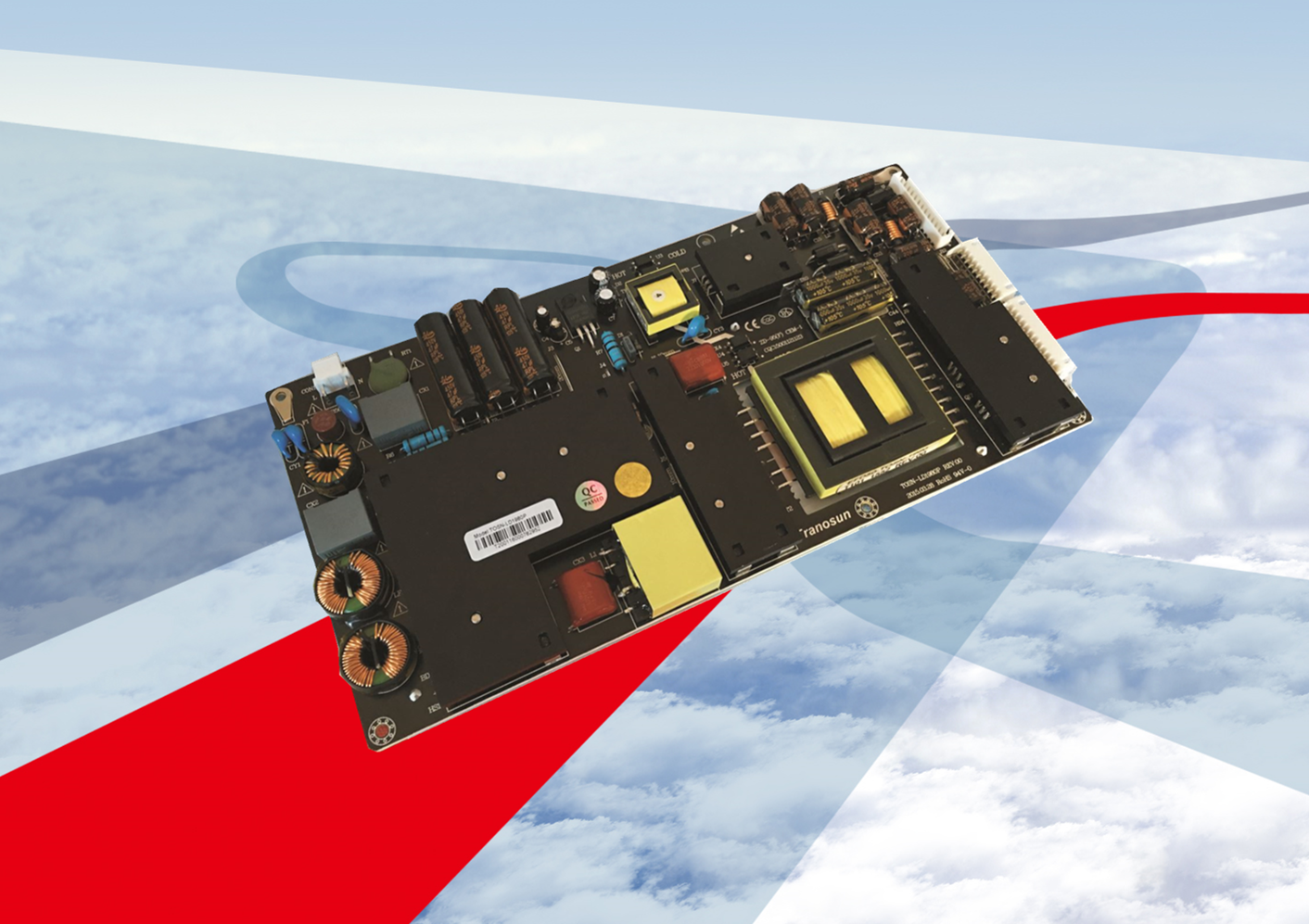

產品型號(Product model): | TOSN-LD1980P (210W) | |||
產品參數(Product specifications) | ||||
輸入電壓(Input current): | 100~240Vac(Range:90~264Vac). | |||
輸入電流(Input current): | 3.5A Max. | |||
輸入頻率(Input frequency): | 50/60Hz(Frequency range:47~63Hz). | |||
輸出電壓(Output voltage): | +24V/+12V/+5V/+5VSB | |||
輸出電流(Output current): |
7.0A/2.5A/3.0A/0.7A(9.0A/3.0A/4.0A /2.0A max) |
|||
紋波及雜訊(Ripple and noise): | 250mV max | |||
空載損耗功率: | ≦1.0W | |||
耐壓測試: | 3000 VAC/1min/5mA | |||
漏電流: | 0.5mA max.240VAC/ 50Hz | |||
電壓調整率/負載調整率: | ±5% | |||
轉換效率: | ﹥85% | |||
功能: | 具有過流,過壓,過溫,短路等保護功能 | |||
工作溫度: | -25℃ to +45℃. | |||
相對濕度: | 10~90%RH | |||
安規標準: | 符合UL/EN60950/60065/GB4943 | |||
電磁兼容標準: | 符合EN55022&&EN55024 Class B,IEC-61000-4-2, IEC-61000-4-4,Lever 3,Criteria B,IEC-61000-4-5,Lever 3,IEC-61000-4-11,Criteria B | |||
外形尺寸(Dimensions): | (L)130*(W)130 *(H)13 mm | |||
重量(Weight): | 470g | |||
Output Voltage | Load Regulation | Min Load | Rate Load | Max current |
輸出電壓 | 負載調整率 | 最小負載 | 標稱負載 | 最大負載 |
+V1(+24V) | ±10% | 0.1A | 7.0A | 9.0A |
+V2(+12V) | ±10% | 0.1A | 2.5A | 3.0A |
+V3(+5V) | ±5% | 0.1A | 3.0A | 4.0A |
+V4(5VSB) | ±5% | 0.1A | 0.5A | 2.0A |
