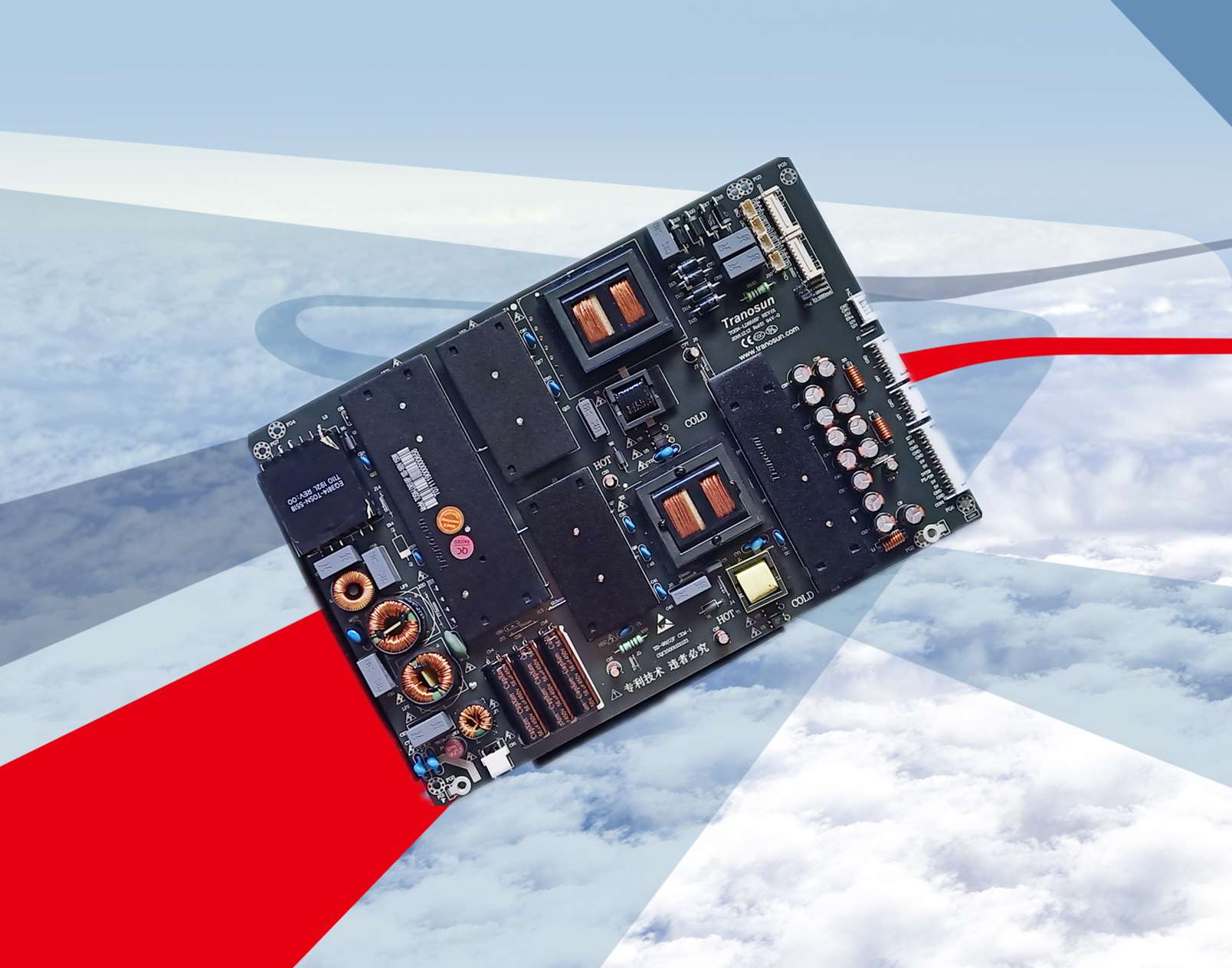

| 產品型號（Product model）： | TOSN-LD6518P (350W 200W背光 ) | |||
| 產品參數（Product specifications） | ||||
| 輸入電壓（Input current）: | 100～240Vac(Range:90～264Vac). | |||
| 輸入電流（Input current）: | 3.7A Max. | |||
| 輸入頻率（Input frequency）: | 50/60Hz(Frequency range:47～63Hz). | |||
| 輸出電壓（Output voltage）: | +24V/+18V/+12V/+5V/+5VSB. | |||
| 輸出電流（Output current）: | 5.0A/2.0A/2.0A/0.5A(7.0A//4.0A/2.5A/1.0A max) | |||
| LED恒流（LED constant current): | +90V～+160V 1000mA(500mA*2) | |||
| +90V～+160V 1200mA(600mA*2) | ||||
| +90V～+142V 1400mA(700mA*2) | ||||
| +90V～+111V 1600mA(800mA*2) | ||||
| 紋波及雜訊（Ripple and noise）: | 180mV max | |||
| 空載損耗功率:（No load power consumption） | ≦0.5W | |||
| 耐壓測試(Hi-Pot test): | 3000 VAC/1min/5mA | |||
| 漏電流(leakage current): | 0.25mA max.240VAC/ 50Hz | |||
|
電壓調整率/負載調整率:
(VoltageRegulation/ Load Regulation)
|
±5% | |||
| 轉換效率(Conversion Efficiency): | ﹥85% | |||
| 功能(Function)： | 具有過流,過壓,過溫,短路等保護功能 | |||
| 工作溫度(Operation temperature): | -25℃ to +55℃. | |||
| 相對濕度(Relative Humidity): | 10～90%RH | |||
| 安規標準(Safty Regulation Standard): | 符合UL/EN60950/60065/GB4943 | |||
| 電磁兼容標準(EMC): | 符合EN55032 & EN55024 Class B , GB13837-2012 , GB9254-2008, IEC/EN 61000-3-2:2014 , GB17625.1-2012 | |||
| 外形尺寸（Dimensions）： | (L)280*(M)190*(H)15 mm | |||
| 重量（Weight）： | 750g | |||
| Output Voltage | Load Regulation | Min Load | Rate Load | Max current |
| 輸出電壓 | 負載調整率 | 最小負載 | 標稱負載 | 最大負載 |
| +V1(+5VSB) | ±5% | 0.05A | 0.5A | 1.0A |
| +V2(+5V) | ±5% | 0.1A | 2.0A | 2.5A |
| +V3(+12V) | ±5% | 0.1A | 2A(或5A) | 4.0A(或7A) |
| +V4(+18V) | ±10% | 0.1A | 5A(或2A) | 7.0A(或3A) |
|
LED
Output Voltage range
|
LED
Output standard voltage
|
LED
Rated current
|
LED
Rated output Power
|
|
| LED 輸出電壓范圍 | LED 輸出標準電壓 | LED 額定電流 | LED 額定功率 | |
| +V5(+90V～+160V) | +90V～+160V --------＞ | 1000mA(500mA*2) |
＜200W
恒流總功率不能超過200W
|
|
| +90V～+160V --------＞ | 1200mA(600mA*2) | |||
| +90V～+142V --------＞ | 1400mA(700mA*2) | |||
| +90V～+111V --------＞ | 1600mA(800mA*2) | |||
